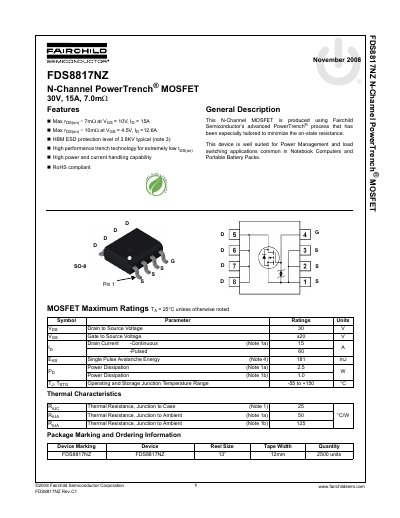

FDS8817NZ N-Channel PowerTrench® MOSFET is an N-channel MOSFET produced by Fairchild Semiconductor. It has a maximum rDS(on) of 7mΩ at VGS = 10V, ID = 15A. This device has extremely low rDS(on), high power and current handling capability, and complies with RoHS standards.
This document is a datasheet for the Fairchild Semiconductor FDS8817NZ, an N-Channel PowerTrench MOSFET designed for power management and load switching applications. The device is well-suited for use in notebook computers and portable battery packs, utilizing advanced PowerTrench technology to minimize on-state resistance.
The datasheet provides maximum ratings, electrical characteristics, and typical performance curves. Key specifications include a drain to source voltage of 30V, a continuous drain current of 15A, and a typical on-resistance of 7.0mQ at Vgs=10V. It also details thermal characteristics, capacitance, switching times, and safe operating areas.
| On-Resistance (Typical) | 7.0 mQ |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
Yes, the device is RoHS compliant.
The device supports a continuous drain current of 15 A.
The maximum power dissipation is 2.5 W when mounted on a 2 oz copper pad.
The device operates safely between -55°C and +150°C.
