FDS3692 is a high-voltage N-channel MOSFET produced by Fairchild Semiconductor Corporation. Its features are low RDS(ON), low Qg(tot), low QRR, excellent high-frequency efficiency, and UIS capability. The product is suitable for DC/DC converters, Off-Line UPS, distributed power architectures and VRMs, 24V and 48V systems primary switch, high voltage synchronous rectifier, direct injection/diesel injection systems, 42V automotive load control, and electronic valve train systems.

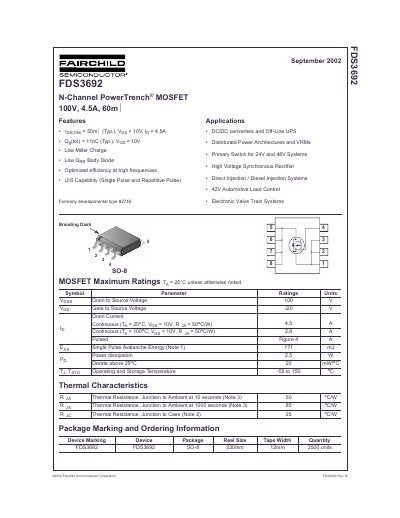

This document is a technical datasheet for the Fairchild Semiconductor FDS3692, an N-Channel PowerTrench MOSFET rated at 100V and 4.5A continuous drain current. The device features low Miller charge, low on-resistance, and optimized efficiency at high frequencies.
| Drain to Source Voltage | 100 V |
|---|---|
| Power Dissipation | 25 W |
| Operating Temperature Range | -55 to 150 °C |
| Package Type | SO-8 |
Copper pad area has no perceivable effect on transient thermal impedance when the pulse width is less than 100ms.
