FDS4141 P-Channel PowerTrench® MOSFET is a P-channel MOSFET produced by Fairchild Semiconductor. It features high performance trench technology and extremely low rDS(on) and can be used in synchronous and non-synchronous buck, load switch and inverter applications.

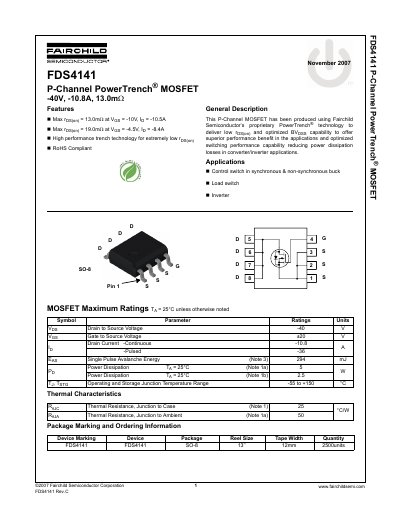

This document is a preliminary datasheet for the Fairchild Semiconductor FDS4141, a P-Channel PowerTrench MOSFET. The device features a maximum drain-to-source voltage of -40V and continuous current ratings up to 10.8A.
The datasheet provides comprehensive electrical characteristics including off-state breakdown voltages, on-resistance values under various gate-source voltages, and dynamic parameters such as input capacitance and switching times. It also includes typical characteristic curves for on-region performance, temperature coefficients, and safe operating areas.
| Drain to Source Voltage (VDS) | -40 V |
|---|---|
| Continuous Drain Current (ID) | -10.8 A |
| Operating Junction Temperature Range | -55 to +150 °C |
The maximum continuous drain current is -10.8 A.
The operating and storage junction temperature range is -55 to +150 °C.
