The FDS4410 is a single N-channel logic level PWM optimized PowerTrench™ MOSFET with 10A continuous drain current and 30V drain-source voltage. It is optimized for use in switching DC/DC converters with PWM controllers, and features very fast switching and low gate charge, resulting in higher overall efficiency.

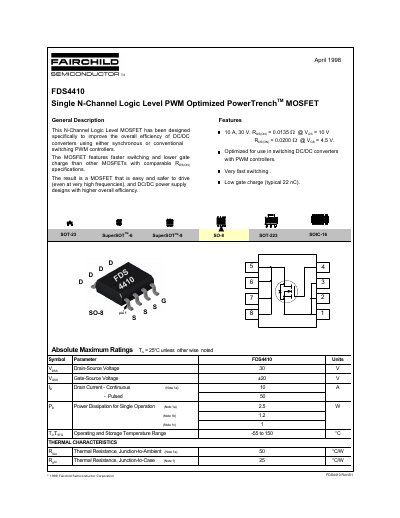

This document is a technical datasheet for the Fairchild Semiconductor FDS4410, an N-Channel Logic Level MOSFET. It is specifically optimized for use in switching DC/DC converters with PWM controllers to improve overall efficiency.
The device features very fast switching and low gate charge (typical 22 nC). Key specifications include a drain-source voltage of 30 V, a continuous drain current of 10 A, and an on-resistance ranging from 0.011 Ω to 0.023 Ω depending on temperature.
| Pulsed Drain Current (Icp) | 50 A |
|---|---|
| Total Gate Charge (Qg) | 22 nC |
It is optimized for use in switching DC/DC converters with PWM controllers.
It features very fast switching and low gate charge, making it easy to drive at high frequencies.
