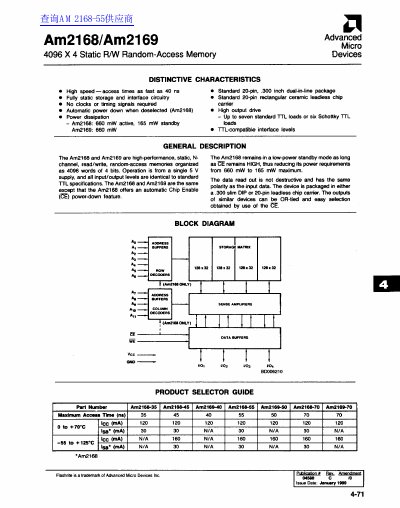

This document provides technical specifications for the AMD Am2168 and Am2169, which are high-performance, static N-channel read/write random-access memory devices organized as 4096 words of 4 bits. The devices operate from a single +5V supply with TTL-compatible input/output levels.
| Power Dissipation (Active) | 660 mW |
|---|
The Am2168 offers an automatic Chip Enable (CE) power-down feature, while the Am2169 does not.
Up to seven standard TTL loads or six Schottky TTL loads.
