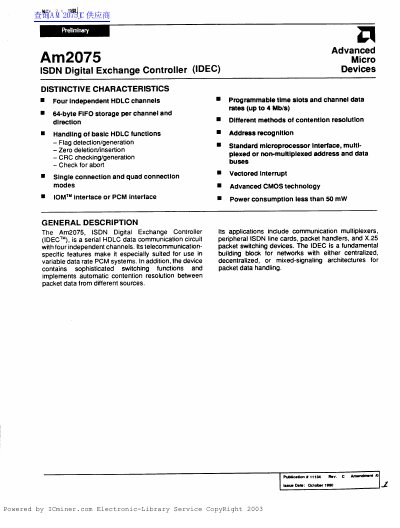

The Advanced Micro Devices (AMD) AM2075 is a serial HDLC data communication circuit designed specifically for use in variable data rate PCM systems. It features four independent HDLC channels with 64-byte FIFO storage per channel and direction, capable of handling basic HDLC functions such as flag detection/generation, zero deletion/insertion, CRC checking, and abort checks.
The device supports both single connection and quad connection modes and can interface via either a JOM or PCM interface. It includes programmable time slots and channel data rates up to 4 Mb/s, along with sophisticated switching functions and automatic contention resolution between packet data from different sources.
| Number of HDLC channels | Four independent |
|---|---|
| FIFO storage per channel and direction | 64-byte |
| Maximum data rate | Up to 4 Mb/s |
| Power consumption | Less than 50 mW |
The device has a power consumption of less than 50 mW.
Standard products are available with a commercial temperature range from 0°C to +70°C.
