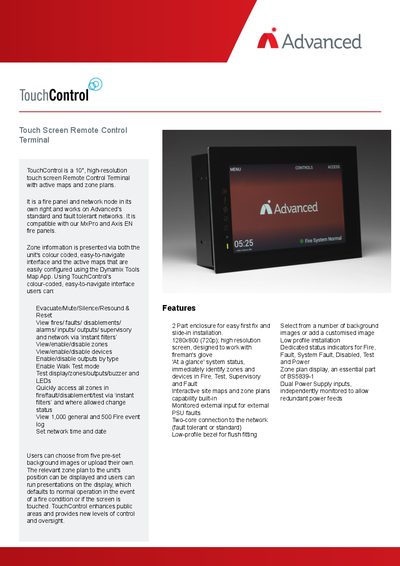

Product leaflet for the Advanced TOUCH-10 Touch Screen Remote Control Terminal, a fire panel and network node compatible with MxPro and Axis EN.
The Advanced TOUCH-10 is a 10-inch high-resolution touch screen Remote Control Terminal that functions as a fire panel and network node. It is compatible with Advanced's MxPro and Axis EN fire panels and operates on standard or fault-tolerant networks. The unit features active maps, zone plans, and an easy-to-navigate, colour-coded interface for managing zones, devices, and system status.
| Screen Resolution | 1280x800 (720p) |
|---|---|
| Supply Voltage | 18-30V DC |
| Supply Current | 300mA |
| Operating Temperature | -5°C to +40°C |
| Relative Humidity | 95% |
| Max Wire Guage | 2.5mm2 |
| Dimensions | H 191 x W 282 x D 80 mm |
It is compatible with Advanced's MxPro and Axis EN fire panels.
TOUCH-10 is for a Standard Network and TOUCH-10/FT is for a Fault Tolerant Network.
