FDMS7602S is a dual N-channel PowerTrench® MOSFET from Fairchild Semiconductor Corporation. It has a rated voltage of 30V and a rated current of 30A. The maximum on-resistance is 7.5mΩ.

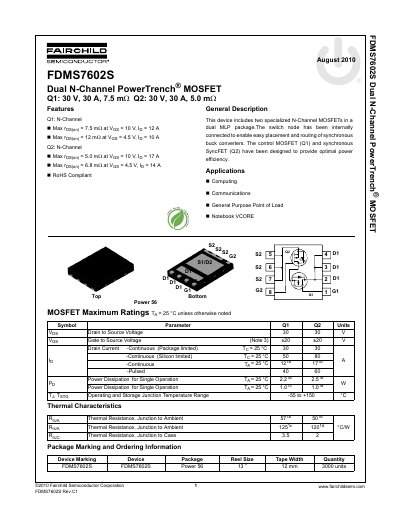

The document describes the Fairchild Semiconductor FDMS7602S, which integrates two specialized N-Channel MOSFETs in a dual MLP package. The device features an internally connected switch node to facilitate easy placement and routing of synchronous buck converters. It includes a control MOSFET (Q1) and a synchronous SyncFET (Q2), optimized for power efficiency.
| On Resistance Max (Q1, VGS=10V) | 7.5 mΩ |
|---|---|
| On Resistance Max (Q2, VGS=4.5V) | 6.8 mΩ |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
The maximum continuous drain current for Q1 is 30 A when the junction temperature is 25 °C.
The device operates and stores within a junction temperature range of -55 to +150 °C.
The maximum power dissipation for single operation is 2.278 W at an ambient temperature of 25 °C.
