This document describes the features and characteristics of the FDMS7600AS Dual N-Channel PowerTrench® MOSFET, including maximum resistance and maximum current.

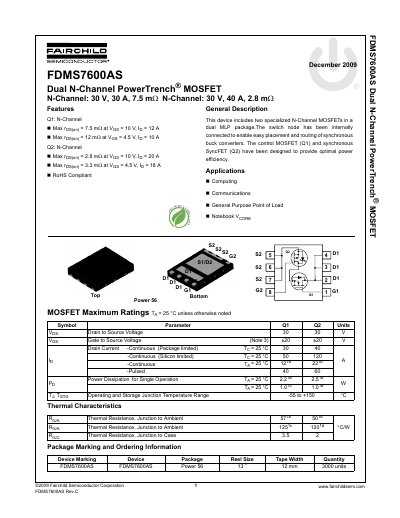

The document describes the Fairchild Semiconductor FDMS7600AS, a dual N-Channel PowerTrench MOSFET available in an MLP package. The device includes two specialized transistors: Q1 (Control MOSFET) rated at 30V/30A with 7.5 mΩ on-resistance, and Q2 (Synchronous SyncFET) rated at 30V/40A with 2.8 mΩ on-resistance.
| Drain Current Continuous Package Limited Q2 | 40 A |
|---|---|
| On Resistance Max Q1 at Vgs=10V, Id=12A | 7.5 mΩ |
| On Resistance Max Q2 at Vgs=4.5V, Id=18A | 3.3 mΩ |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
Yes, the device is RoHS Compliant.
The device operates and stores within a junction temperature range of -55 to +150 °C.
