This datasheet provides MMST4126's characteristic parameters, including maximum voltage, maximum current, maximum power consumption, working temperature range, etc.

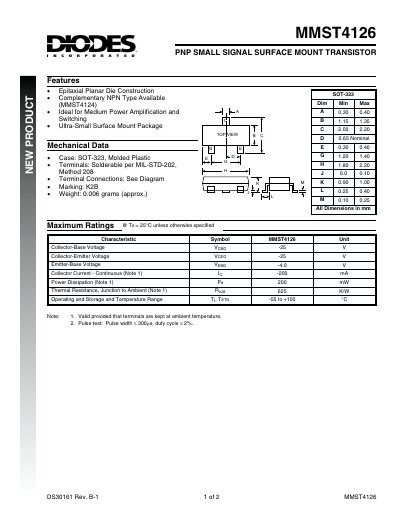

The document is a technical datasheet for the MMST4126, a PNP small signal surface mount transistor. It features an epitaxial planar die construction and is available in a SOT-323 molded plastic package. The device is designed for medium power amplification and switching applications, with a complementary NPN type (MMST4124) also available.
| Collector-Base Voltage | -25 V |
|---|---|
| Collector-Emitter Voltage | -25 V |
| Emitter-Base Voltage | -4.0 V |
| Collector Current - Continuous | -200 mA |
| Power Dissipation | 200 mw |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Package Type | SOT-323 |
The unit operates and stores within a range of -55 to +150 °C.
