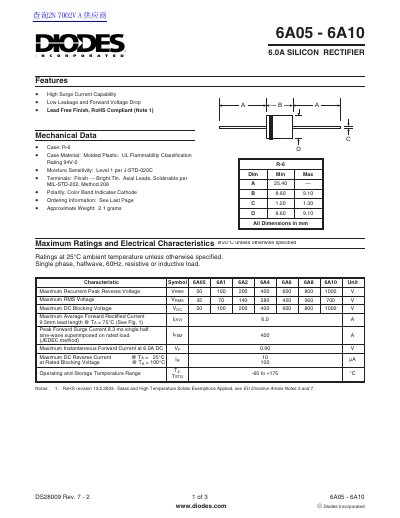

This document is the datasheet of 6A05 - 6A10 6.0A Silicon Rectifier.
This datasheet covers the 6A05 through 6A10 series of 6.0A silicon rectifiers manufactured by Diodes Incorporated. Key features include high surge current capability, low leakage, and a lead-free finish compliant with RoHS standards. The devices are housed in R-6 molded plastic cases with UL 94V-0 flammability rating.
| Maximum Average Forward Rectified Current | 6.0 A |
|---|---|
| Peak Forward Surge Current | 400 A |
| Maximum Recurrent Peak Reverse Voltage | 50 to 1000 V |
| Operating and Storage Temperature Range | -65 to +175 °C |
| Case Material | Molded Plastic |
| UL Flammability Classification | 94V-0 |
Yes, the devices feature a lead-free finish and are RoHS compliant.
The maximum average forward rectified current is 6.0 A.
The peak forward surge current is 400 A for an 8.3 ms single half sine-wave.
