The MMSTA92 is a PNP small signal surface mount transistor, featuring epitaxial planar die construction, complementary NPN type available (MMSTA42), ideal for medium power amplification and switching, and ultra-small surface mount package.

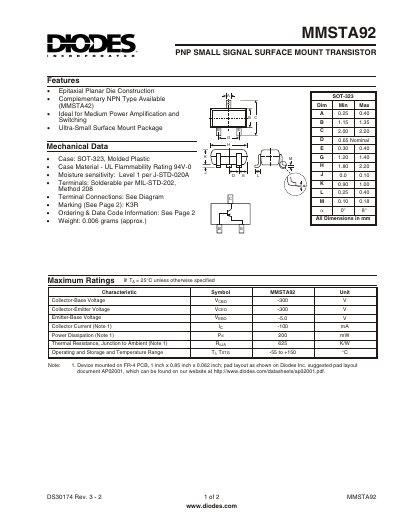

The document describes the MMSTA92, a PNP small signal surface mount transistor featuring an epitaxial planar die construction in a SOT-323 package. It is designed for medium power amplification and switching applications.
Key specifications include a collector-emitter voltage of -300V, a maximum collector current of -100mA, and a power dissipation of 200mW when mounted on an FR-4 PCB. The device operates within a temperature range of -55°C to +150°C.
| Package Type | SOT-323 |
|---|---|
| Collector-Emitter Voltage (Vceo) | -300 V |
| Collector Current (Ic) | -100 mA |
| Power Dissipation (Pd) | 200 mW |
| Operating Temperature Range | -55 to +150 °C |
The maximum collector current (Ic) is -100 mA.
The thermal resistance from junction to ambient (RθJA) is 625 K/W.
The output capacitance (Cob) is a maximum of 6.0 pF.
