MMST3906 is a PNP small signal surface mount transistor with a small size and excellent performance.

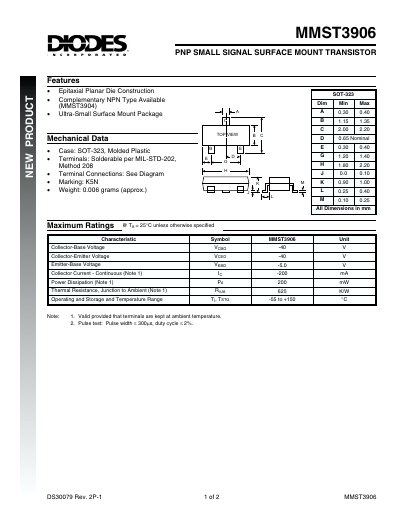

This document is a datasheet for the MMST3906, a PNP small signal surface mount transistor manufactured by Diodes Incorporated. The device features an epitaxial planar die construction and is housed in a compact SOT-323 molded plastic package.
The datasheet provides comprehensive electrical characteristics including maximum ratings such as collector-base voltage of -40V and continuous collector current of -200mA. It also details small signal parameters like DC current gain (hFE) ranging from 60 to 300, switching times, and capacitance values under specific test conditions.
| Package Type | SOT-323 |
|---|---|
| Collector-Base Voltage | -40 V |
| Operating Temperature Range | -55 to +150 °C |
| DC Current Gain (hFE) | 60 to 300 |
The maximum continuous collector current is -200 mA.
The maximum power dissipation is 200 mW.
The operating and storage temperature range is -55 to +150 °C.
