FDMC7582 is an N-Channel PowerTrench® MOSFET with a maximum resistance of 5.0 mΩ. It is suitable for DC/DC converters with low charge and fast switching speed.

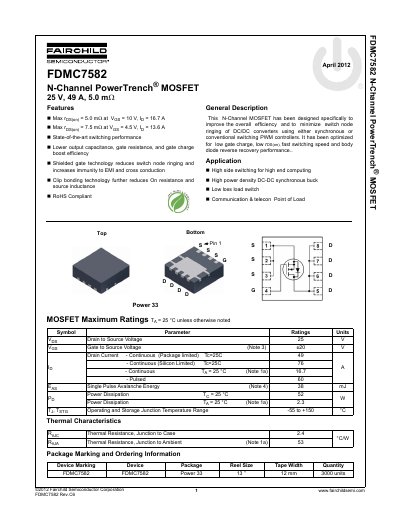

The document describes the Fairchild Semiconductor FDMC7582, an N-Channel PowerTrench MOSFET rated at 25 V and 49 A. It is optimized for low gate charge, low on-resistance, fast switching speed, and body diode reverse recovery performance to improve efficiency in DC/DC converters.
| Drain to Source Voltage (VDS) | 25 V |
|---|---|
| Continuous Drain Current (Package limited) | 49 A |
| Static Drain to Source On Resistance (VGS=10V, ID=16.7A) | 5.0 mΩ |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Power Dissipation (Ta = 25°C) | 2.3 W |
The device operates and stores within a junction temperature range of -55 to +150 °C.
