FDMC7664 is an N-Channel PowerTrench® MOSFET with a maximum resistance of 4.2 mΩ. It is well suited for power management and load switching applications in notebook computers and portable battery packs.

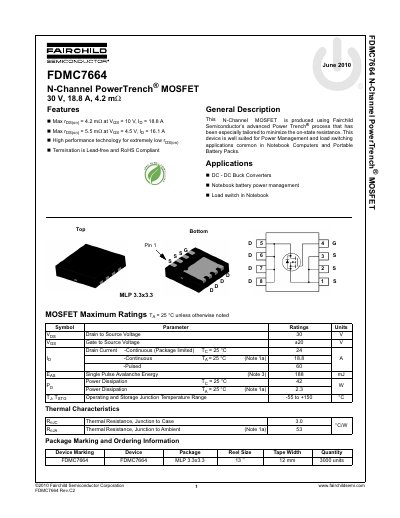

This document is a datasheet for the Fairchild Semiconductor FDMC7664, an N-Channel PowerTrench MOSFET designed for power management and load switching applications. The device is rated for a maximum drain-to-source voltage of 30V and a continuous drain current of 18.8A at 25°C. It utilizes Fairchild's advanced PowerTrench process to achieve extremely low on-state resistance, with a typical value of 4.2 mΩ at Vgs = 10V and Id = 18.8A.
| Drain to Source Voltage | 30 V |
|---|---|
| Continuous Drain Current | 18.8 A |
| On-State Resistance | 4.2 mΩ |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | MLP 3.3x3.3 |
The maximum drain to source voltage rating is 30 V.
The operating and storage junction temperature range is -55 to +150 °C.
