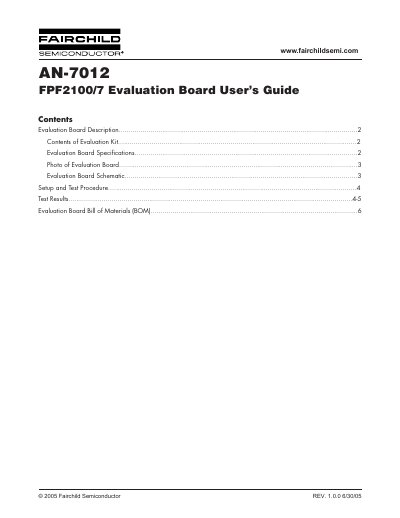

The document is the User's Guide for AN-7012 FPF2100/7 Evaluation Board. It provides a description of the evaluation board, contents of the evaluation kit, specifications, and test results. The evaluation board is used to evaluate the performance of Fairchild Semiconductor FPF2100/1/2/3/4/5/6/7 smart load switches family. This family of products features controlled turn-on, fast turn-off, thermal shutdown, under voltage lock out, and current limit.
The document is a user's guide for the FPF2100/7 Evaluation Module (EVM), designed to test the Fairchild Semiconductor FPF2100/1/2/3/4/5/6/7 smart load switches family. The board provides access to all pins and allows users to simulate fault conditions such as overcurrent, under-voltage lockout, and thermal shutdown by manipulating input voltage, output current, and the ON pin state.
| Operating Voltage Range | 1.8V to 5.5V |
|---|---|
| Board Dimensions | 1.75 x 2.35 inches |
The current limit is guaranteed for 200 mA.
The current limit is guaranteed for 400 mA.
