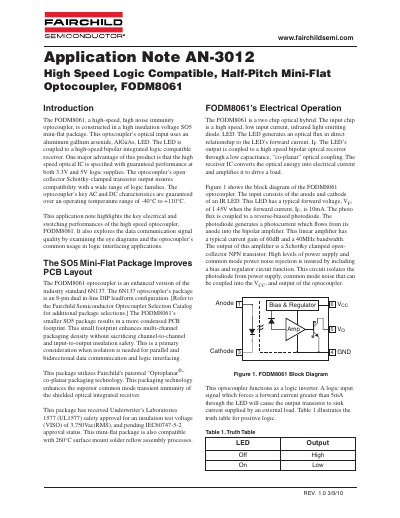

This document describes the features and characteristics of the FODM8061 high-speed, high noise immunity optocoupler, as well as its common usage in logic interfacing applications.
The FODM8061 is a high-speed, high noise immunity optocoupler constructed in a high insulation voltage SOS mini-flat package. It features an aluminum gallium arsenide (AlGaAs) LED coupled to a high-speed bipolar integrated logic compatible receiver, ensuring compatibility with both 3.3V and 5V logic supplies. The device is specified with guaranteed performance over an operating temperature range of -40°C to +110°C.
| Operating Temperature Range | -40°C to +110°C |
|---|---|
| Insulation Test Voltage | 3,750Vac(RMS) |
| Common Mode Transient Immunity | excess of 20kV/us |
| Typical Propagation Delay | approximately 36ns |
| Typical Pulse Width Distortion | 2ns |
A typical device offers a symmetrical high-to-low and low-to-high propagation delay of approximately 36ns.
Yes, the high speed optical IC is specified with guaranteed performance at both 3.3V and 5V logic supplies.
