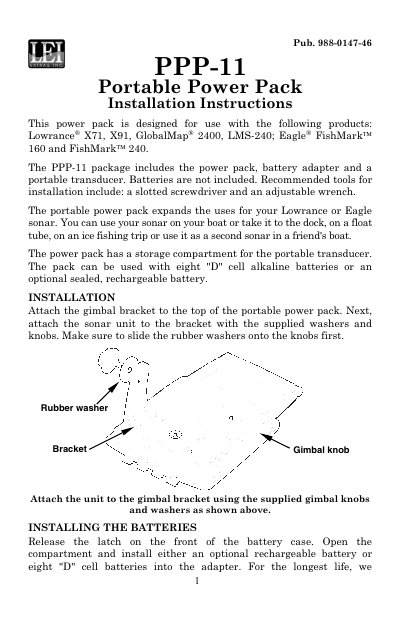

The LEI PPP-11 Portable Power Pack is an accessory designed for use with Lowrance and Eagle sonar products, such as the X71, X91, and Eagle FishMark series. The package includes the power pack, a battery adapter, and a portable transducer, allowing users to operate their sonar on boats, docks, or float tubes using either eight "D" cell alkaline batteries or an optional sealed rechargeable battery.
This guide provides step-by-step instructions for installing the power pack and the portable transducer. It details how to attach the gimbal bracket and sonar unit, install batteries correctly, and assemble the transducer with its suction cup and nylon cord for secure mounting on a boat hull.
| Compatible Sonar Models | Lowrance X71, X91, GlobalMap 2400, LMS-240; Eagle FishMark 160 and FishMark 240 |
|---|---|
| Battery Options | Eight "D" cell alkaline batteries or an optional sealed, rechargeable battery |
| Package Contents | Power pack, battery adapter, portable transducer |
The unit can be powered by eight "D" cell alkaline batteries or an optional sealed, rechargeable battery.
Recommended tools include a slotted screwdriver and an adjustable wrench.
