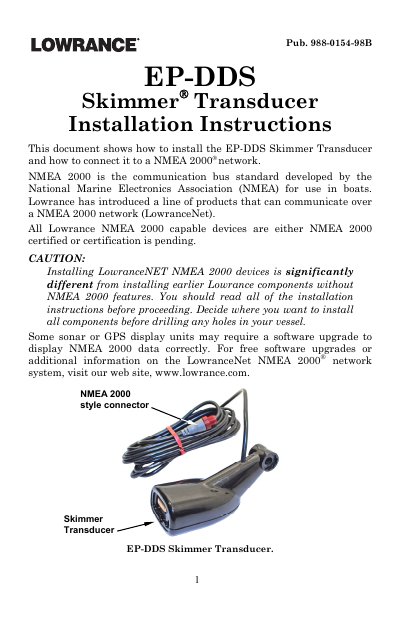

This document describes the installation method of EP-DDS Skimmer Transducer, including the composition of the sensor, the connection method, and the installation steps.
This document provides installation instructions for the Lowrance EP-DDS Skimmer Transducer, a device that converts depth and temperature readings into NMEA 2000 data format. It details how to connect the transducer to a NMEA 2000 network backbone using T-connectors and terminators, as well as how to use the NMEA 2000 style female-to-Lowrance blue female adapter cable for compatibility with older Lowrance blue connector networks.
The guide also covers the physical installation of the transducer on a boat's transom. It explains the use of the two-piece plastic kick-up mounting bracket, provides recommendations for selecting the optimal location to ensure smooth water flow and avoid cavitation, and includes step-by-step instructions for assembling the bracket and drilling mounting holes.
| Cable Length | 15 feet |
|---|---|
| Connector Type | NMEA 2000 style |
| Mounting Bracket Type | two-piece, plastic kick-up |
| Drill Bit Size | #20 (0.161") |
| Screw Size | #12 stainless steel |
Yes, it is compatible by using a NMEA 2000 style female-to-Lowrance blue female adapter cable.
You need two adjustable wrenches, a drill with a #20 bit, a Phillips head screwdriver, #12 stainless steel screws, and marine grade sealant.
