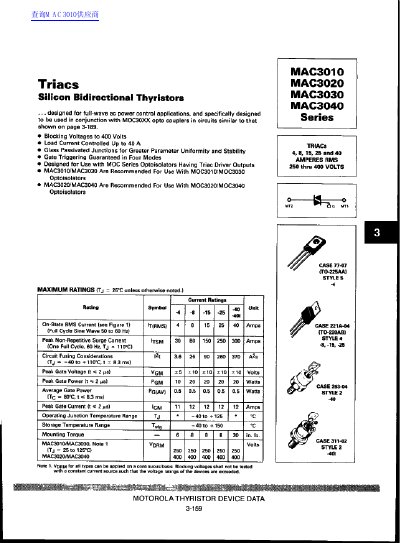

This document provides technical data for the Motorola MAC3010, MAC3020, MAC3030, and MAC3040 series of Silicon Bidirectional Thyristors (Triacs). These devices are designed for full-wave AC power control applications and are specifically intended for use with MOC30XX opto-couplers. The datasheet lists maximum ratings, electrical characteristics, and derating curves for various current levels.
| Blocking Voltages | 250 thru 400 Volts |
|---|---|
| Load Current | 4, 6, 15, 25 and 40 Amperes |
| Operating Junction Temperature Range | -40 to +125 C |
| Storage Temperature Range | -40 to +150 C |
| Peak Gate Voltage | +10 to +10 Volts |
The MAC3010 and MAC3030 are recommended for use with MOC3010 and MOC3030 opto-isolators.
The MAC3020 and MAC3040 are recommended for use with MOC3020 and MOC3040 opto-isolators.
The peak non-repetitive surge current for the MAC3040 is 300 Amperes.
