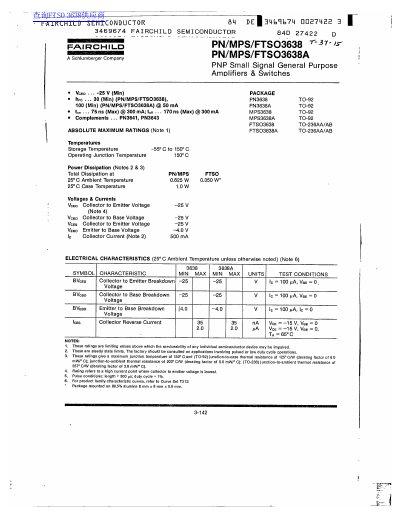

This document is a technical datasheet covering multiple series of Fairchild Semiconductor transistors. It includes specifications for the PN/MPS/FTSO3638 (PNP Small Signal General Purpose Amplifiers & Switches), PN/MPS/FTSO3639 and PN/MPS/FTSO3640 (PNP High Speed Saturated Logic Switches), and PN3641 through PN3643 (NPN General Purpose Small Signal Amplifiers).
| Collector to Emitter Voltage (PN/MPS/FTSO3638) | -25V |
|---|---|
| Collector to Emitter Voltage (PN3641) | 30V |
The device can operate at a junction temperature of up to 150°C.
The total dissipation is limited to 0.625 W at 25°C ambient temperature.
