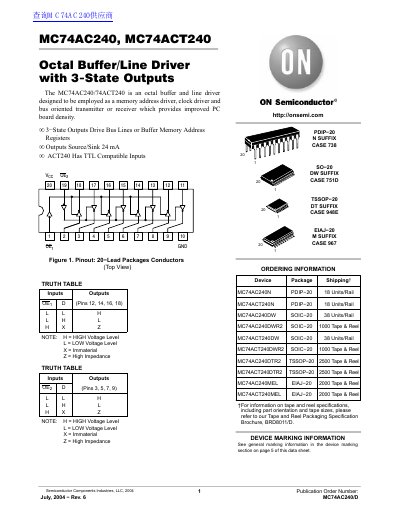

MC74AC240/74ACT240 is an octal buffer and line driver designed to be employed as a memory address driver, clock driver and bus oriented transmitter or receiver which provides improved PC board density.
The MC74AC240 and MC74ACT240 are octal buffers and line drivers designed for use as memory address drivers, clock drivers, and bus-oriented transmitters or receivers. These devices provide improved PC board density and feature 3-state outputs that can drive bus lines or buffer memory address registers. The outputs are capable of sourcing or sinking 24 mA of current.
| Supply Voltage (VCC) | -0.5 to +7.0 V |
|---|---|
| Output Current | 24 mA |
| Storage Temperature | -65 to +150 °C |
| Operating Ambient Temperature | -40 to +85 °C |
| Input Capacitance | 45 pF |
It is an octal buffer and line driver designed to be employed as a memory address driver, clock driver, and bus oriented transmitter or receiver.
The outputs can source or sink 24 mA.
