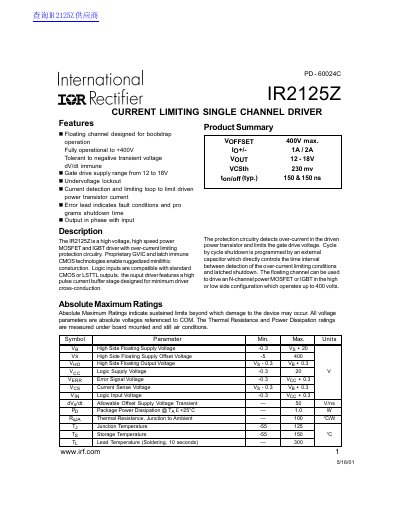

The IR2125Z is a high voltage, high speed power MOSFET and IGBT driver with over-current limiting protection circuitry. The product has the following features: floating channel design, which enables bootstrap operation; fully operational to +400V; tolerance to negative transient voltage; dV/dt immunity; gate drive supply range from 12 to 18V; undervoltage lockout; current detection and limiting loop to limit driven power transistor current; fault lead indicates fault conditions and programmes shutdown time; output in phase with input.
The IR2125Z is a high voltage, high speed power MOSFET and IGBT driver featuring proprietary GVIC (Gate Voltage Current Limiting) technology. It includes current detection and limiting loops to protect driven transistors from over-current conditions by limiting the gate drive voltage.
| High Side Floating Supply Voltage (Max) | +20V |
|---|---|
| High Side Floating Supply Offset Voltage (Max) | 400 V |
| Turn-On Propagation Delay (Typ) | 200 ns |
| Turn-Off Propagation Delay (Typ) | 300 ns |
| Quiescent Vcc Supply Current (Max) | 1500 uA |
| Logic "1" Input Bias Current (Max) | 30 uA |
The device supports a high side floating supply offset voltage up to 400V.
The typical turn-on propagation delay is 200 ns under standard test conditions.
The Logic "1" Input Voltage maximum is 3.0V and Logic "0" Input Voltage maximum is 0.8V.
