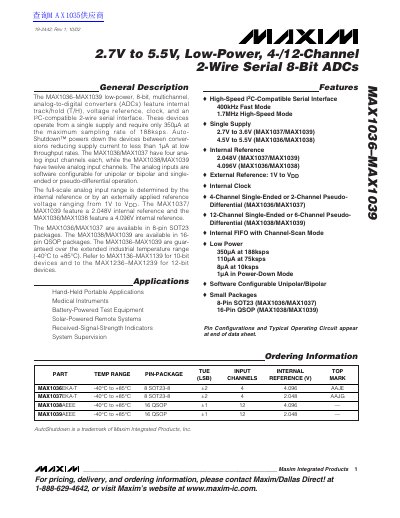

The MAX1036–MAX1039 low-power, 8-bit, multichannel, analog-to-digital converters (ADCs) feature internal track/hold (T/H), voltage reference, clock, and an I2C-compatible 2-wire serial interface. These devices operate from a single supply and require only 350µA at the maximum sampling rate of 188ksps. Auto-Shutdown™ powers down the devices between conversions reducing supply current to less than 1µA at low throughput rates. The MAX1036/MAX1037 have four ana- log input channels each, while the MAX1038/MAX1039 have twelve analog input channels. The analog inputs are software configurable for unipolar or bipolar and single- ended or pseudo-differential operation. The full-scale analog input range is determined by the internal reference or by an externally applied reference voltage ranging from 1V to VDD. The MAX1037/MAX1039 feature a 2.048V internal reference and the MAX1036/MAX1038 feature a 4.096V internal reference. The MAX1036/MAX1037 are available in 8-pin SOT23 packages. The MAX1038/MAX1039 are available in 16-pin QSOP packages. The MAX1036–MAX1039 are guar- anteed over the extended industrial temperature range (-40°C to +85°C). Refer to MAX1136–MAX1139 for 10-bit devices and to the MAX1236–MAX1239 for 12-bit devices.
The document describes the MAX1036 through MAX1039 devices, which are 8-bit, multichannel analog-to-digital converters (ADCs) designed for low-power applications. These devices feature an internal track/hold circuit, voltage reference, and clock, along with a 2-wire serial interface compatible with I2C standards.
The family is divided into two groups based on channel count: the MAX1036/MAX1037 offer four analog input channels, while the MAX1038/MAX1039 provide twelve. They operate from a single supply voltage ranging from 2.7V to 5.5V and support both unipolar and bipolar operation modes.
| Resolution | 8 Bits |
|---|---|
| Maximum Sampling Rate (Internal Clock) | 188ksps |
| Power-Down Current | less than 1pA |
| Internal Reference Voltage (MAX1036/MAX1038) | 4.096V |
| Internal Reference Voltage (MAX1037/MAX1039) | 2.048V |
| Operating Temperature Range | -40°C to +85°C |
The devices operate at a maximum sampling rate of 188ksps.
Yes, they feature an internal track/hold and voltage reference. The MAX1036/MAX1038 use a 4.096V reference, while the MAX1037/MAX1039 use a 2.048V reference.
