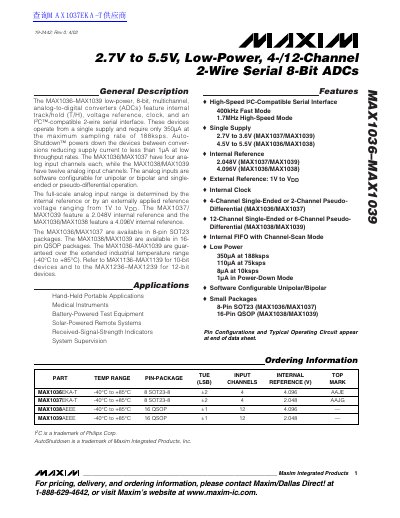

The MAX1036-MAX1039 are low-power 8-bit multichannel analog-to-digital converters (ADCs) featuring internal track/hold (T/H), voltage reference, clock, and an I2C™-compatible 2-wire serial interface. These devices operate from a single supply and require only 350µA at the maximum sampling rate of 188ksps. Auto- Shutdown™ powers down the devices between conver- sions reducing supply current to less than 1µA at low throughput rates. The MAX1036/MAX1037 have four ana- log input channels each, while the MAX1038/MAX1039 have twelve analog input channels. The analog inputs are software configurable for unipolar or bipolar and single- ended or pseudo-differential operation. The full-scale analog input range is determined by the internal reference or by an externally applied reference voltage ranging from 1V to VDD. The MAX1037/ MAX1039 feature a 2.048V internal reference and the MAX1036/MAX1038 feature a 4.096V internal reference. The MAX1036/MAX1037 are available in 8-pin SOT23 packages. The MAX1038/MAX1039 are available in 16- pin QSOP packages. The MAX1036–MAX1039 are guar- anteed over the extended industrial temperature range (-40°C to +85°C). Refer to MAX1136–MAX1139 for 10-bit devices and to the MAX1236–MAX1239 for 12-bit devices. Applications Hand-Held Portable Applications Medical Instruments Battery-Powered Test Equipment Solar-Powered Remote Systems Received-Signal-Strength Indicators System Supervision Features o High-Speed I2C-Compatible Serial Interface
The MAX1036-MAX1039 are low-power, 8-bit, multichannel analog-to-digital converters (ADCs) that feature internal track/hold, voltage reference, clock, and a 2C-compatible 2-wire serial interface. These devices operate from a single supply and require only 350µA at the maximum sampling rate of 188ksps. Auto-Shutdown powers down the devices between conversions reducing supply current to less than 1pA at low throughput rates.
| Resolution | 8 Bits |
|---|---|
| Supply Voltage | 2.7V to 5.5V |
| Sampling Rate | 188ksps |
| Power-Down Current | 1pA |
| Operating Temperature | -40°C to +85°C |
| Interface | 2C-compatible 2-wire serial |
The devices operate at a maximum sampling rate of 188ksps.
The MAX1036 and MAX1038 models operate from a supply voltage of 4.5V to 5.5V.
The supply current is less than 1pA when the device is in power-down mode.
