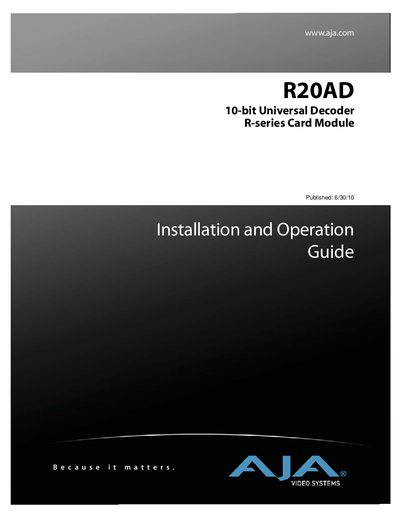

AJA R20AD 10-bit Universal Decoder Installation and Operation Guide

About this manual

The AJA R20AD is a 10-bit Universal Decoder designed to provide high-quality conversion from component or NTSC/PAL sources to SDI. It accepts YPbPr, Betacam, RGB component inputs, and NTSC/PAL or Y/C composite inputs. The module features a 4 Line Adaptive Comb Filter for decoding composite sources and supports automatic NTSC/PAL selection.

What's inside

• Introduction
• Features
• User Controls
• Bank 0 Functions
• Bank 1 Functions
• Installation

Frequently asked questions

What video sources does the R20AD accept?

The device accepts YPbPr, Betacam, or RGB component inputs as well as NTSC/PAL or Y/C composite inputs.

What are the physical dimensions of the card?

The R20AD is a 10.3"X 3.1" card designed to plug into specific AJA Video frames.

What voltage range does the power cord support?

The equipment requires a power connection ranging from 90 to 260 VAC.
