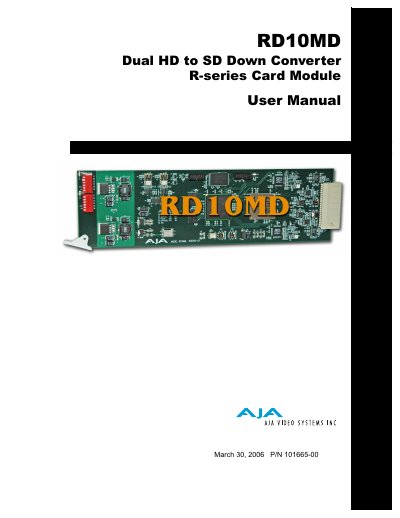

This document is the user manual for the RD10MD Dual HD to SD Down Converter R-series Card Module, which describes the features and characteristics of the product.
The AJA RD10MD is a 10-bit broadcast-quality Dual channel HD down converter designed for use in AJA R-Series frames. It features two fully independent channels, each capable of converting HD-SDI or SDI inputs to SDI or analog composite outputs. The device supports various HD formats, including 1080i and 720p, and handles 23.98/24 Hz progressive and pulsed signals with 3:2 pulldown conversion.
| Formats | 1080i 50/59.94/60 Hz, 1080p/psf 23.98/24/25/29.97/30 Hz, 720p 23.98/24/25/29.97/30/50/60 Hz |
|---|---|
| Inputs | 2 Channels, HD-SDI or SDI SMPTE 259/292/296, 10-bit, 2x BNC |
| Downconversion | Multi-point interpolation, 10-bit processing 3:2 conversion for 23.98/24p/psf inputs |
| Power Consumption | 7 watts |
The RD10MD supports 1080i at 50/59.94/60 Hz, 1080p/psf at 23.98/24/25/29.97/30 Hz, and 720p at 23.98/24/25/29.97/30/50/60 Hz.
The RD10MD has two fully independent channels for HD to SD down conversion.
The RD10MD consumes 7 watts of power.
