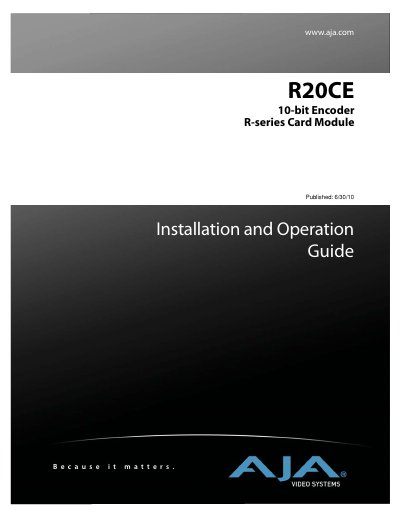

This document is the installation and operation guide for the AJA R20CE 10-bit Encoder R-series Card Module. The encoder is a registered trademark of AJA and features 10-bit encoding. The document also mentions other AJA products and trademarks.
The AJA R20CE is a card module designed for use in FR1 or FR2 frames that converts SMPTE 259M SDI inputs into high-quality NTSC or PAL analog video. It features 10-bit encoding with four times oversampling and includes two re-clocked SDI outputs.
The device produces high quality NTSC or PAL 10-bit encoded video from SMPTE 259M SDI inputs.
The unit provides two SDI outputs that are equalized and re-clocked copies of the SDI input.
The four analog outputs can be configured as four composite outputs, or one composite and Y/Pb/Pr, or Y/C.
