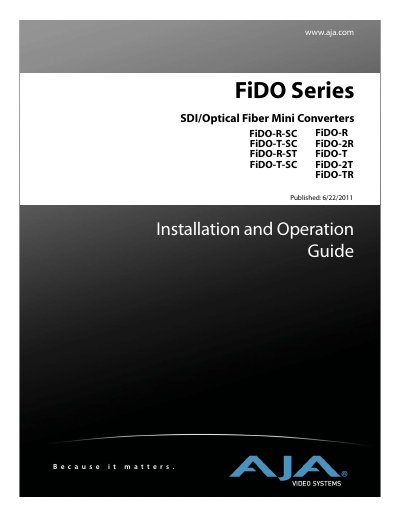

This document is about the Installation and Operation Guide for AJA FiDO Series SDI/Optical Fiber Mini Converters
The AJA FiDO Series is a family of SDI/Optical Fiber converters designed to transport SDI, HD-SDI, and 3G SDI signals over distances up to 10km using standard single-mode fiber optic cable. The series offers nine models with varying connector types (LC, SC, or ST) and simplex or duplex configurations, suitable for both indoor and outdoor use. These rugged devices provide electrical isolation to eliminate ground loop problems and feature auto-detection of video formats.
| Formats | 3Gb, 1.5Gb, 270Mb, Auto Select |
|---|---|
| Video Inputs/Outputs | SDI (SMPTE 259/292/296/424), 2x BNC |
| Optical Outputs Wavelength | 1310 nm |
| Power Supply | +5-20 VDC |
| Size | 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm) |
No, AJA does not support the use of any SFP modules other than their own, and using non-AJA modules will void the warranty.
The converters allow the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single-mode fiber optic cable.
The devices require a 5-20VDC power supply, which is sold separately.
All FiDO devices require the use of single mode 1310nm compatible fiber optic cable.
