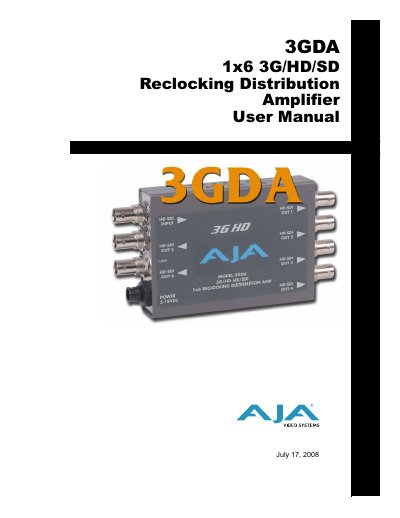

AJA Video 3GDA 1x6 Reclocking Distribution Amplifier User Manual

This manual introduces the functions and usage of AJA 3GDA 1x6 3G/HD/SD Reclocking Distribution Amplifier.

Brand: AJA
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 4
File format: PDF
File size: 197 KB
Published: 09 July, 2012
Updated: 01 October, 2023
MD5 checksum: A048237D2623AB447E18D93D1D468B91
PDF: AJA Video 3GDA 1x6 Reclocking Distribution Amplifier User Manual PDF

About this manual

The AJA Video 3GDA 1x6 is a miniature, low-cost re-clocking distribution amplifier designed for 3G-HD-SDI, HD-SDI, and SDI signals. It features six separately buffered outputs with automatic input detection, re-clocking capabilities, and cable equalization up to 120 meters (for 3G signals) using 1694 coax.

What's inside

Introduction
I/O Connections
Installation
Specifications

Specifications

Cable Equalization (3G)	120m
Power Supply	+5-18VDC, Regulated, 3 watts
Dimensions	5.8" x 2.4" x 1"

Frequently asked questions

What is the maximum cable length for 3G signals?

The device supports up to 120 meters of cable equalization for 3Gb signals.

Does the amplifier support embedded audio?

Yes, the inputs and outputs pass all ancillary data including embedded audio.
