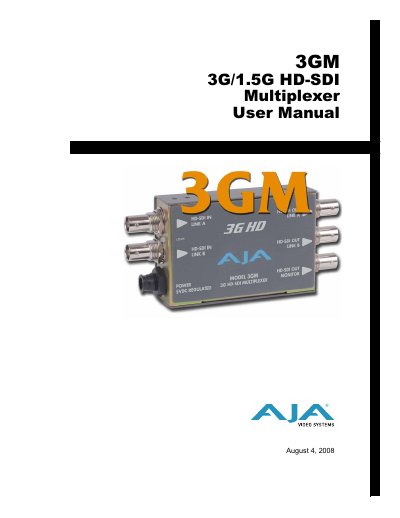

AJA 3GM 3G/1.5G HD-SDI Multiplexer User Manual

3GM 3G/1.5G HD-SDI Multiplexer User Manual

Brand: AJA
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 426 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: C49A824CA425F18E159E2A3FC12C681D
PDF: AJA 3GM 3G/1.5G HD-SDI Multiplexer User Manual PDF

About this manual

The AJA 3GM is a versatile tool designed to interconnect dual-link 1.5G SMPTE372M and 3G SMPTE425M signals. It functions as a bi-directional converter, allowing conversion between dual 1.5G and 3G formats, with the ability to convert 3G from type A or B configurations. Additionally, it provides a monitor output compliant with SMPTE292M for single-link 1.5G HD-SDI.

What's inside

Introduction
Features
Block Diagram
User Controls
Specifications

Specifications

Video Inputs	2 HD-SDI, SDI (SMPTE 259/292/296/424), 2x BNC
Video Outputs	3G HD-SDI, HD-SDI, SDI, 3x BNC
Formats Supported	3Gb, 1.5Gb, 270Mb
Power Consumption	4 and 6 watts
Operating Temperature	up to 45 degrees Celsius (113 F)

Frequently asked questions

What is the primary function of the AJA 3GM?

It is a versatile tool for interconnecting dual-link 1.5G SMPTE372M and 3G SMPTE425M.

Is the AJA 3GM bi-directional?

Yes, it allows conversion between dual 1.5G to 3G or 3G to dual 1.5G.

What power supply is recommended?

The AJA power supply model DWP or DWP-U is recommended.
