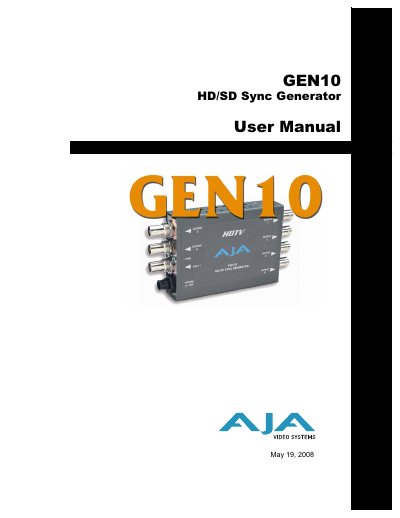

This manual introduces the basic operation of the GEN10 HD/SD Sync Generator, including connection, use and maintenance
The AJA GEN10 is a cost-effective and flexible SD/HD/AES sync generator featuring seven outputs. These include two groups of independently controlled SD/HD sync outputs and one AES-11 output. All outputs are synchronized to an accurate master time base.
Configuration is managed via an 8-switch DIP block accessible through a cut-out in the bottom of the unit. Users can select between HD tri-level sync (720p or 1080i/p) and SD sync (Color Black or Color Bars). The AES-11 output can be switched between silence and tone. Power requirements are 5-18VDC.
| Power Input | 5-18VDC, 2 watts |
|---|---|
| HD Sync Output Type | Tri-level |
| SD Sync Options | Color Black, 75% Color Bars |
| AES-11 Output Options | SILENCE and TONE |
| HD Formats Supported | 720p, 1080i/p variants |
| Physical Dimensions | 5.8" x 3.1" x 1 (147 x 79 x 25mm) |
The GEN10 features 7 outputs including 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output.
The unit requires a power supply providing 5-18VDC.
Configuration is determined by an 8-switch DIP accessible through a cut-out in the bottom of the unit.
