This document describes the maximum ratings of the THYRISTOR MODULE, including repetitive peak off-state voltage, non-repetitive peak off-state voltage, repetitive peak reverse voltage, non-repetitive peak reverse voltage, etc. The module features isolated base and can be used for rectification and other general purposes.

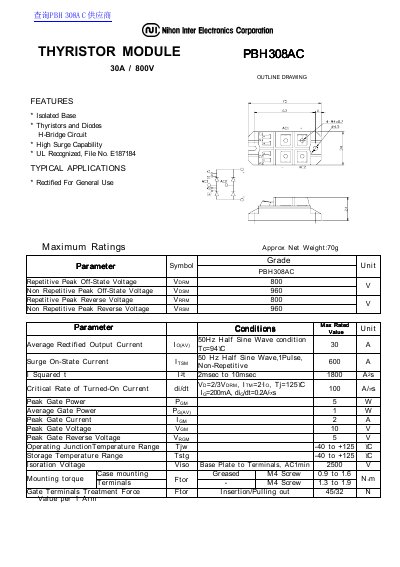

This document is a datasheet for the Nihon Inter Electronics PBH308AC, an isolated H-Bridge thyristor module designed for general rectified use. The device features a base isolation, high surge capability, and is UL recognized with file number E187184. It is rated for a repetitive peak off-state voltage of 800V and an average rectified output current of 30A.
| Repetitive Peak Off-State Voltage | 800 V |
|---|---|
| Operating Junction Temperature Range | -40 to +125 °C |
| Isolation Voltage | 2500 V |
| Peak Gate Power | 5 W |
| Approx Net Weight | 70g |
The module is typically used for rectified general use.
The mounting torque for the case using a greased M4 screw is 0.9 to 1.6 Nm.
The peak gate current (Icm) is rated at 2 A.
