This document describes the maximum ratings, electrical and thermal characteristics of the product with model TCH20A20. The product is a high voltage Schottky barrier diode (SBD) that features low forward voltage drop and low noise. It is suitable for high frequency rectification and power supply applications.

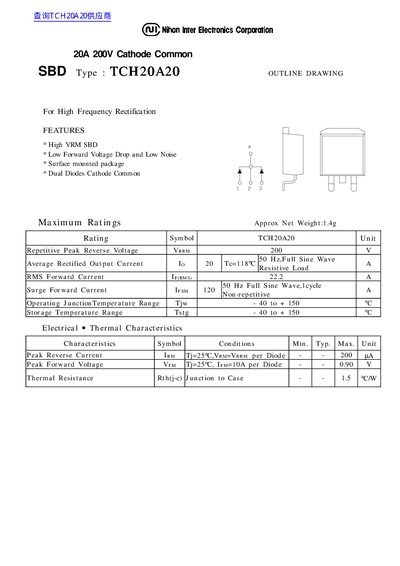

This document is a datasheet for the Nihon Infer Electronics TCH20A20, a high frequency rectification SBD (Schottky Barrier Diode). The device features dual diodes with a common cathode and is designed for surface mounting applications. It is characterized by a high VRM, low forward voltage drop, and low noise.
| Repetitive Peak Reverse Voltage | 200 V |
|---|---|
| Average Rectified Output Current | 20 A |
| Operating Junction Temperature Range | -40 to +150 C |
| Storage Temperature Range | -40 to +150 C |
| Peak Forward Voltage | 0.90 V |
| Thermal Resistance Junction to Case | 1.5 C/W |
It is designed for high frequency rectification.
It uses a surface mounted package.
It contains dual diodes with a common cathode.
