PE1508/PF1508 is a high voltage and large current rectifier module with a reverse current of 20mA, a maximum reverse voltage of 800V and a maximum average rectified output current of 150A. It can be used for general purpose rectifier circuits.

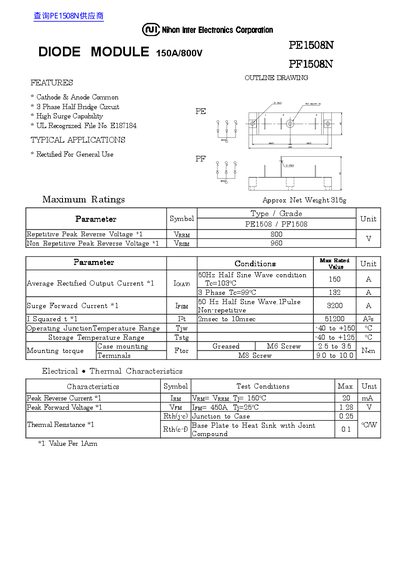

This document is a datasheet for the Nihon Inter Electronics PE1508N and PF1508N diode modules. These modules feature a 3-phase half-bridge circuit with common cathode and anode connections. The document provides typical applications, including rectification for general use, and outlines the physical dimensions and mounting requirements.
| Circuit Type | 3 Phase Half Bridge Circuit |
|---|---|
| Repetitive Peak Reverse Voltage | 800 V |
| Non Repetitive Peak Reverse Voltage | 960 V |
| Average Rectified Output Current (50Hz) | 150 A |
| Average Rectified Output Current (3 Phase) | 182 A |
| Surge Forward Current | 3200 A |
| Operating Junction Temperature Range | -40 to +150 °C |
| Storage Temperature Range | -40 to +125 °C |
| Peak Reverse Current | 20 mA |
| Peak Forward Voltage | 1.28 V |
The maximum average rectified output current is 150 A under a 50 Hz half sine wave condition.
The operating junction temperature range is from -40 to +150 °C.
Mounting requires an M6 screw with a torque of 2.5 to 3.5 N·m.
