The EA61FC6-F is a Schottky diode from Infineon that features ultra-fast recovery, low voltage drop, low power loss, and high surge capability.

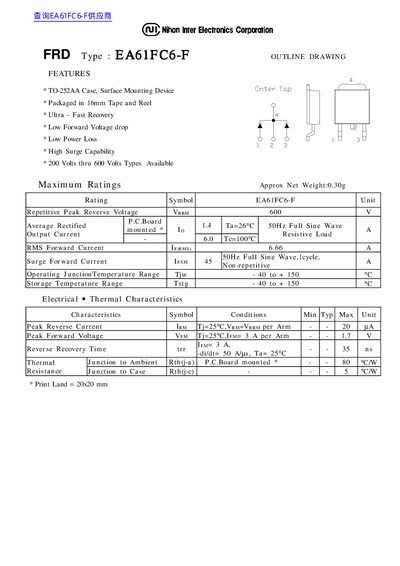

This document is a technical datasheet for the Nihon Inter Electronics Corporation model EA61FC6-F, which is an ultra-fast recovery surface mounting device. The component features a TO-252AA case and is packaged in 16mm tape and reel.
Key specifications include a repetitive peak reverse voltage of 600V, an average rectified output current of 6.0A, and a surge forward current capability of 45A. The device operates within a junction temperature range of -40 to +150°C.
| Package Type | TO-252AA Case, Surface Mounting Device |
|---|---|
| Packaging | 16mm Tape and Reel |
| Repetitive Peak Reverse Voltage (VRRM) | 600 V |
| RMS Forward Current (Irrms) | 6.66 A |
| Surge Forward Current (Irsm) | 45 A |
| Operating Junction Temperature Range | -40 to +150 °C |
| Thermal Junction to Ambient Resistance (RthJA) | 80 °C/W |
The maximum repetitive peak reverse voltage is 600 V.
The operating junction temperature range is from -40 to +150 °C.
