Nihon Inter Electronics PBH203/PBH206/PBH208 Thyristor Module Datasheet

This product is PB series dual arm full bridge module, with isolated base, high surge capability, UL recognized and other characteristics, suitable for general purpose rectification

Brand: Nihon
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 185 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 1D79257E42970BD95407F3353657C876
PDF: Nihon Inter Electronics PBH203/PBH206/PBH208 Thyristor Module Datasheet PDF

About this manual

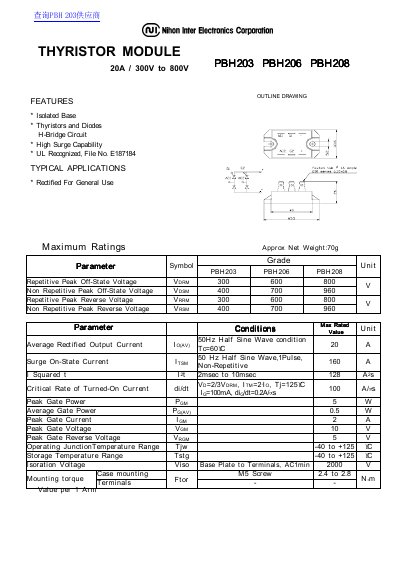

This document is a technical datasheet for the Nihon Inter Electronics Corporation PBH series of Thyristor Modules. The models covered are PBH203 (300V), PBH206 (600V), and PBH208 (800V). These modules feature an isolated base design with integrated thyristors and diodes in an H-Bridge circuit configuration, designed for high surge capability.

What's inside

Features
Typical Applications
Maximum Ratings
Electrical Characteristics
Thermal Characteristics
Outline Drawing

Specifications

Peak Gate Power	5 W
Operating Junction Temperature Range	-40 to +125 °C
