11DF4 is a FRD in the 11DF series, which has features such as small size, ultra-fast recovery time, low voltage drop, high efficiency and high surge capability.

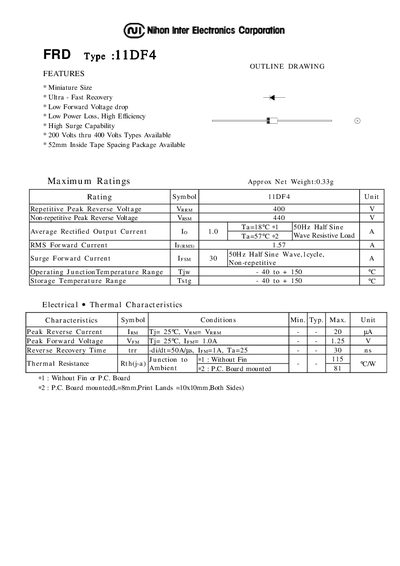

This document is a technical datasheet and outline drawing for the FRD Type 11DF4, a miniature size ultra-fast recovery rectifier manufactured by Nihon Inter Electronics Corporation. The device features low forward voltage drop, high surge capability, and is available in voltages ranging from 200 to 400 volts.
| Repetitive Peak Reverse Voltage (VRRM) | 400 V |
|---|---|
| Non-repetitive Peak Reverse Voltage (VrsM) | 440 V |
| Average Rectified Output Current | 1.0 A |
| Surge Forward Current (Irsm) | 30 A |
| Operating Junction Temperature Range | -40 to +150 °C |
| Reverse Recovery Time (trr) | 30 ns |
| Approx Net Weight | 0.33g |
The device has a maximum repetitive peak reverse voltage of 400 V.
The operating junction temperature ranges from -40 to +150 °C.
The maximum non-repetitive surge forward current is 30 A.
