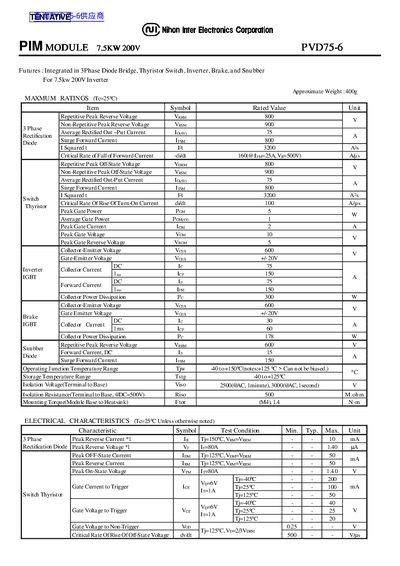

Nihon Inter PVD75-6 PIM Module Datasheet

PVD75 is a single module integrated with 3 Phase Diode Bridge, Thyristor Switch, Inverter, Brake, and Snubber.

Brand: Nihon
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 61 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 1EB2FC27AFDE10B7349E8500BA17D15E
PDF: Nihon Inter PVD75-6 PIM Module Datasheet PDF

About this manual

This document is a technical datasheet for the Nihon Inter Electronics Corporation PVD75-6 Power Interface Module (PIM). The device integrates a 3-phase diode bridge, thyristor switch, inverter, brake, and snubber components designed for 7.5kW 200V inverters.

What's inside

MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS
THERMAL CHARACTERISTICS
OUTLINE DRAWING

Specifications

Rated Power	7.5kW
Operating Voltage	200V
Average Rectified Output Current (Diode)	75 A
Collector-Emitter Voltage (Inverter IGBT)	600 V
Operating Junction Temperature Range	-40 to +150°C

Frequently asked questions

What is the maximum weight of the PVD75-6 module?

The approximate weight of the module is 400g.

What is the mounting torque for the module base to heatsink?

The required mounting torque is 1.4 N-m using an M4 screw.

What is the operating junction temperature range for this module?

The module operates within a junction temperature range of -40 to +150°C.
