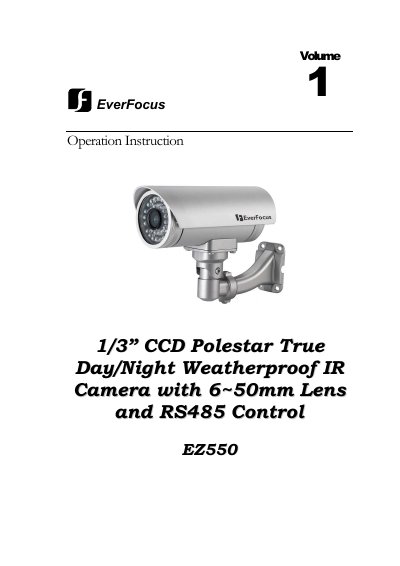

This document is an operation instruction manual for a weatherproof IR camera with day/night function produced by EverFocus Electronics Corp. The camera is equipped with six 5500mm lenses and an RSS448855 controller, enabling high-quality surveillance. The document provides detailed instructions on the installation and operation of the camera.
The EverFocus EZ550 is a true day/night, long-range IR bullet style color camera featuring Polestar Sens-up technology. It utilizes an advanced 16-bit DSP for high-resolution imaging and includes a built-in motor controller for a 6~50mm auto iris lens. The camera supports RS485 remote control for OSD settings and lens adjustments via an external keyboard or joystick.
| Picture Elements | 768 x 494 (NTSC) ; 752 x 582 (PAL) |
|---|---|
| Sensitivity | 0.002 Lux/F=1.2 (IR Off, SENS-UP 128x) |
| Operating Temperature | -40°C ~ +50°C |
| IR Distance | 50M / 164 feet |
The sensitivity is 0.002 Lux/F=1.2 when IR is off with SENS-UP 128x enabled.
The IR distance is up to 50 meters or about 164 feet.
It supports a 6~50mm auto iris lens with a built-in motor controller.
