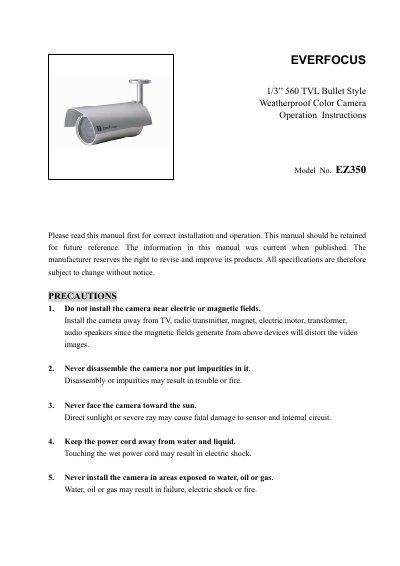

This document is the operation manual for the EVERFOCUS 1/3” 560 TVL Bullet Style Weatherproof Color Camera. It provides instructions for installation and operation of the camera, as well as precautions for cleaning and maintenance.
This manual provides operation instructions for the EverFocus EZ350, a 1/3" SONY Super HAD CCD bullet-style weatherproof color camera. Designed for outdoor applications such as parking lots and gas stations, it features an integrated heater for cold weather operation and IP66 weatherproof rating.
The document details installation procedures, including mounting the bracket and connecting power sources (12VDC or 24VAC). It also explains how to adjust focus, iris level, and various DIP switch settings like Back Light Compensation and Automatic Gain Control.
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Horizontal Resolution | 560 TVL |
| Sensitivity | 0.5 Lux/F=1.2 |
| Weatherproof Rating | IP66 |
| Operating Temperature | -40°C ~ 50°C |
| Power Source | 12VDC/24VAC |
The camera should be operated at temperatures between -40°C and 50°C (-40°F to 122°F).
When BLC is on, the AGC, ES, and IRIS operating points are determined by averaging over the center area to distinguish foreground objects from bright backgrounds.
