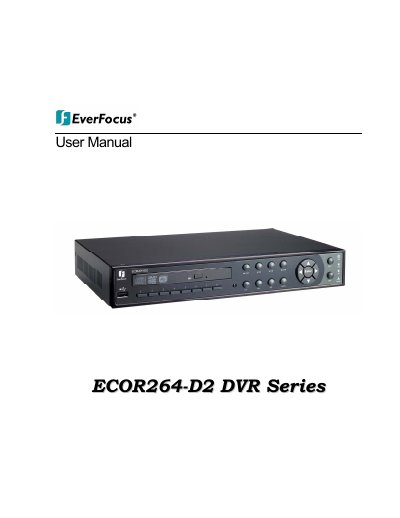

This manual describes the features and characteristics of the EverFocus ECOR264-D2 DVR series, and how to install, use and maintain the device.
The EverFocus ECOR264-D2 DVR series utilizes H.264 compression to enhance recorded video storage capacity and conserve network transmission bandwidth while maintaining high image quality. The series supports both 4 and 8 camera models, capable of real-time recording with independent configuration of image resolution and frame rate for each camera. It features a user-friendly color Graphical User Interface (GUI) that allows for fast and easy configuration over the network, from the front panel, or with the included mouse. The enhanced GUI includes visual indicators and icons to simplify the setup process.
The manual covers a wide range of topics including product overview, safety precautions, installation procedures for video inputs, audio, alarm contacts, and RS-485 keyboards/PTZ devices. It details operations for the front panel and mouse, general DVR functions such as recording, playback, and search capabilities (including Smart and Snapshot Search), and comprehensive configuration settings for cameras, recording schedules, and network parameters. Additionally, it provides guidance on remote operation via web browser and DDNS setup.
| Compression Format | H.264 |
|---|---|
| Recording Capacity (4 camera) | 4x30FPS@2CIF |
| Recording Capacity (8 camera) | 8x30FPS@CIF |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Relative Humidity | 20%~80% |
| Input Power Source | 12VDC |
| AC Input Range | 100~240VAC |
The ECOR264-D2 series uses H.264 compression to enhance recorded video storage capacity and conserve network transmission bandwidth.
Yes, the ability to independently configure image resolution and frame rate for individual cameras allows some cameras to be recorded at D1 while others are set at CIF or 2CIF.
The DVR should be used at indoor temperatures within 0°C~40°C (32°F~104°F).
Yes, the ECOR264 D2 series supports mobile monitoring of live video from PDA and Smart Phones.
