BFQ241 is a PNP video transistor primarily intended for buffer stages in high resolution colour monitors. It is encapsulated in a 3-lead plastic SOT54 package.

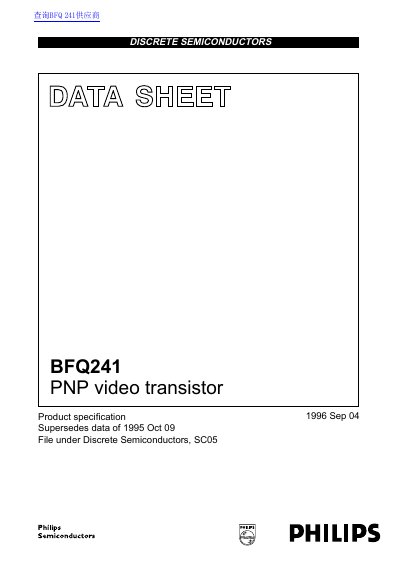

This datasheet describes the Philips BFQ241, a PNP silicon transistor encapsulated in a 3-lead plastic SOT54 package. It is primarily intended for use in buffer stages within high resolution colour monitors.
The document provides quick reference data and limiting values, including a maximum collector-base voltage of -100 V, a maximum collector current of -100 mA, and a transition frequency of 1 GHz. It also details thermal characteristics, electrical characteristics such as current gain and feedback capacitance, and includes package outline dimensions.
| Package type | 3-lead plastic SOT54 |
|---|---|
| Collector-base voltage (Vcbo) | -100 V |
| Collector current (Ic) | -100 mA |
| Total power dissipation (Prot) | 1.15 W |
| Feedback capacitance (Cre) | 1.7 pF |
| Junction temperature (Tj) | 150 °C |
The maximum collector-base voltage is -100 V.
The maximum collector current is -100 mA.
