This document is a safety instruction manual that introduces the operation methods, precautions, maintenance methods, etc. of the equipment.

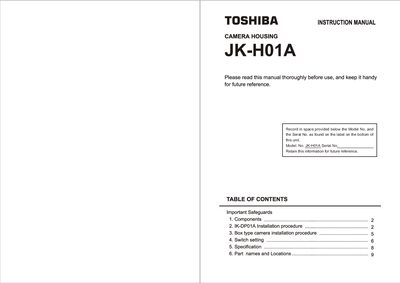

The document serves as an instruction manual for installing the Toshiba JK-HO1A camera housing. It details safety precautions regarding power sources, ventilation, and servicing before beginning the setup process.
The guide provides step-by-step procedures for two specific installation scenarios: mounting a dome camera (models IK-DP01A or DP02A) and mounting a box-type camera. It also includes instructions for setting switches on the associated dome drive and base units.
The manual specifies that a hole with a diameter of 9.02 + 0.08" (229+ 2mm) must be drilled in the ceiling.
The housing can be attached to a ceiling with a thickness of up to 1.77" (45mm).
The product should be operated only from the type of power source indicated on the marking label.
