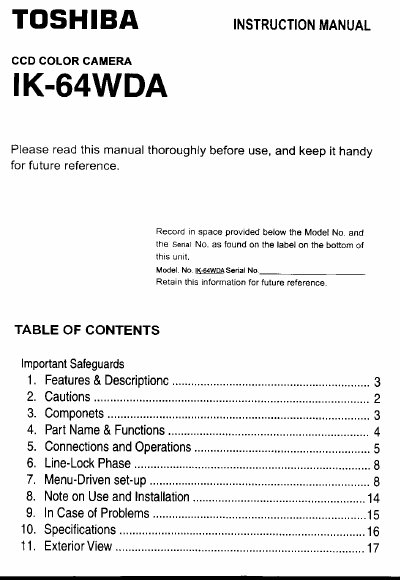

This document is an instruction manual for the Toshiba IK-64WDA CCD Color Camera. It provides essential safety information, describes key features such as dynamic range and digital noise reduction, and details component functions.
The guide covers installation procedures including lens mounting (C-mount or CS-mount), basic system connections using 75-ohm coaxial cables, and power supply requirements (24V AC or 12V DC). It also explains advanced operations like Line-Lock phase control for stable synchronization with video switchers and menu-driven set-up options.
| Dynamic Range | 133 Times Dynamic Range |
|---|---|
| Digital Noise Reduction (DNR) | 53dB s/n ratio |
| Minimum Illumination | 0.003Lux @ 1.2 |
| Minimum Power Consumption | 7W |
The camera supports both 'C' mount and 'CS' mount lenses. If a 'C' mount lens is used, an adapter ring is required.
A 75-ohm coaxial cable (3C-2V or 5C-2V) is required.
It takes about 10 seconds or more until a stable synchronization is obtained.
