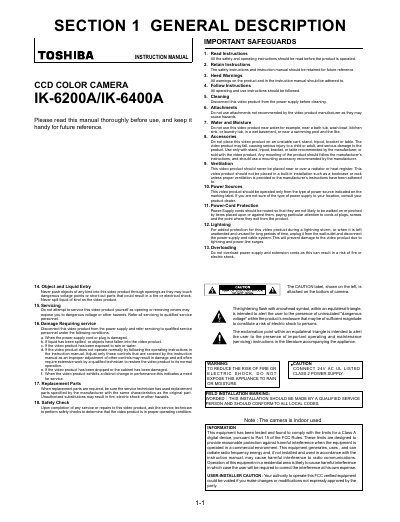

This is an instruction manual for IK-6200A/IK-6400A CCD COLOR CAMERA
This document serves as the instruction manual for the Toshiba IK-6200A and IK-6400A CCD color cameras. It outlines essential safety precautions, including warnings against liquid entry and unauthorized servicing, as well as specific installation requirements such as using a qualified service person for field installation. The manual details the components supplied with the unit and explains the necessary connections for power and video signals.
| Product Type | CCD Color Camera |
|---|---|
| Power Supply | 24V AC UL Listed Class 2 or 12V DC |
| Power Consumption | at least 5W |
| Exposure Time Range | 1/60 sec. to 1/100000 sec. |
| Fixed Exposure Time | 1/60 sec. |
Field installation should be made by a qualified service person.
No, do not attempt to service the camera yourself as it may expose you to dangerous voltage.
Aiming the camera at the sun may cause a bloom or smear on the screen.
