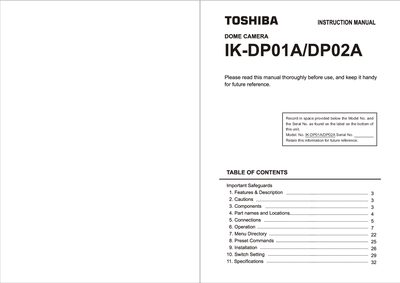

Toshiba IK-DP01A/DP02A Dome Camera Instruction Manual

This document describes the safety and operating instructions for the IK-DP01A/DP02A product.

Brand: Toshiba
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 18
File format: PDF
File size: 11.3 MB
Published: 06 July, 2012
Updated: 30 September, 2023
MD5 checksum: F3FF99B7264B192C27FEDB7AADBF93CD
PDF: Toshiba IK-DP01A/DP02A Dome Camera Instruction Manual PDF

About this manual

This manual provides instructions for the Toshiba IK-DP01A and IK-DP02A dome cameras, detailing their features such as 18x optical zoom, 300 degrees per second pan speed, and various illumination levels. It includes safety precautions, component identification, and connection diagrams for RS-422 and power supplies.

What's inside

Important Safeguards
Features & Description
Cautions
Components
Part names and Locations
Connections
Operation
Menu Directory
Preset Commands
Installation

Specifications

Horizontal Resolution	480 Lines
Pan Speed	300 Degree/Second
Zoom	18X Optical/12X Digital
Minimum Illumination (IK-DP01A)	0.05 Lux
Minimum Illumination (IK-DP02A)	0.01 Lux
Signal-To-Noise Ratio	50dB
Preset Positions	64 Position
Pan Range	360 degrees continuous
Tilt Range	85 degrees

Frequently asked questions

What is the power requirement for the camera?

The camera requires a 24V AC UL listed class 2 power supply.

How do you access the menu on the camera?

Input 95 using the numeric keypad and hold down the PRESET button until the MENU screen is displayed.

What is the maximum manual pan speed?

The manual pan speed ranges from 0.1 degrees/sec to 90 degrees/sec, or 150 degrees/sec in turbo mode.
