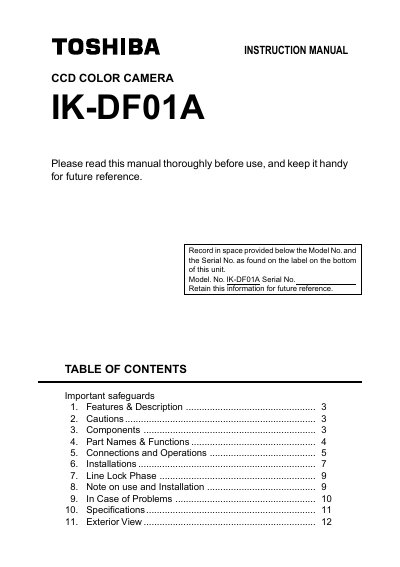

This document describes the features and description of the CCD color camera IK-DF01A. Please read this manual thoroughly before use, and keep it handy for future reference.
This document is the instruction manual for the Toshiba IK-DF01A, an indoor-use CCD color camera. It provides guidance on safety precautions, component identification, and operational settings such as zoom, focus, and iris adjustment. The manual details how to connect power (AC24V or DC12V) and video cables to a monitor.
| Image Sensor Type | 1/4 type CCD |
|---|---|
| Horizontal Resolution | 480 lines |
| Minimum Illumination | 0.5 lx (with smoke cover) |
| Signal-To-Noise Ratio | 50dB |
| Focal Length Range | 2.8~5.8mm |
| Power Supply Options | AC24V or DC12V |
No, the manual explicitly states that the camera is for indoor use only.
No, you must never input 24V AC and 12V DC at the same time.
Line Lock is available only when using the AC24V power supply.
