74F07 is a six-tube open-collector output driver produced by Philips Semiconductors. It has high speed, 12V output termination voltage and other features.

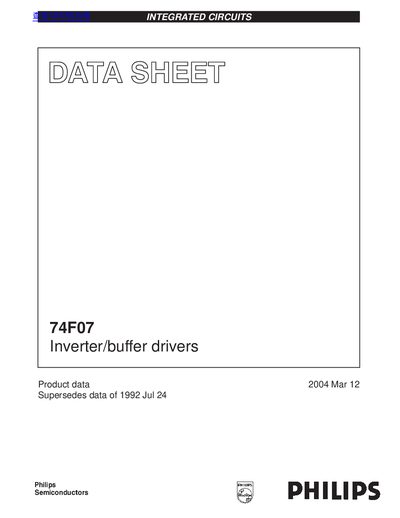

This document is a product datasheet for the Philips 74F07, a hex inverter/buffer driver with open-collector outputs. It supersedes previous data from July 1992 and was published in March 2004. The device is designed for high-speed applications with a typical propagation delay of 4.5ns and an output drive capability of 64mA.
| Output drive | 64mA |
|---|---|
| Propagation delay | 4.5ns |
| Supply voltage | 4.5 to 5.5 V |
| Operating temperature | 0 to +70 °C |
| Package types | 14-pin plastic small outline package, 14-pin plastic dual in-line package |
The typical propagation delay is 4.5ns.
The maximum supply voltage is 7.0V.
The output drive capability is 64mA.
