The Philips Semiconductors BT134 series Triacs are glass-passivated, bidirectional switches in a plastic envelope, intended for use in general-purpose bidirectional switching and phase control applications, where high voltage sensitivity is required in all four quadrants.

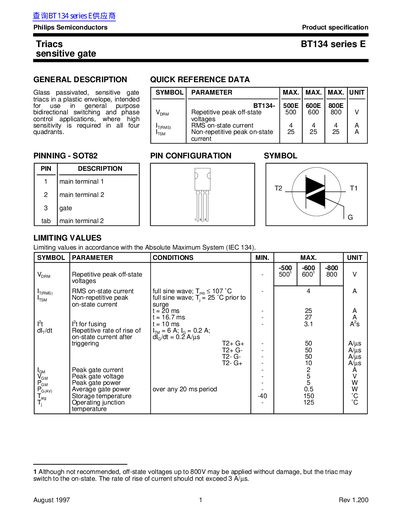

This datasheet covers the Philips BT134 series E, which consists of glass passivated, sensitive gate triacs in a plastic envelope. These devices are designed for use in general purpose bidirectional switching and phase control applications where high voltage sensitivity is required in all four quadrants.
The document provides comprehensive technical data including general descriptions, quick reference data, limiting values, thermal resistances, static and dynamic characteristics, and mechanical data for the SOT82 package. It also includes definitions for data sheet status and application information.
| Repetitive peak off-state voltage | 500V, 600V, 800V |
|---|---|
| Storage temperature | -40 to 150 C |
| Package type | SOT82 |
The triacs are in a plastic envelope with a SOT82 pin configuration.
The net mass of the package is 0.8 g.
